Introduction and objectives

In this tutorial, we will be introducing you to the main software we will be using to analyse data.

Our aim is to import our data into R. Along the way, we will learn about how to:

• Understand some history of R and where it originated from
• keep our analyses tidy using folders or directories
• Understand and apply file paths, and how they may differ between using in R and the various different types of operating systems.
• Understand the concept of a working directory and the difference between relative and absolute file paths
• Understand how comments are written in R
• Understand how to import data into R and write basic R code
• Understand the basic building blocks of R code: objects, functions and arguments, and
• Understand the structure of files used to store epidemiological data (often Excel™ spreadsheets)

<div class="panel panel-default tutorial-question-container">
<div data-label="benefit" class="tutorial-question panel-body">
<div id="benefit-answer_container" class="shiny-html-output"></div>
<div id="benefit-message_container" class="shiny-html-output"></div>
<div id="benefit-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

Keeping your analysis tidy using folders

neat and tidy

"Science is organised knowledge.

It is important to be organised. The number one problem I see in the health sector with data analysis is not remembering the definition of a P-value, but staying organised. Data analysis is a complex task, with many different steps. It is important to record where you've been and where you are heading. You need a map to negotiate the murky research waters. Start with a clear research question in mind and have the objectives or milestones written down beforehand so that you know where you're heading. Without this, you'll flounder into the research swamp of confusion and frustration 🤯.

Make sure your data is housed on a network drive -- not your desktop -- so that in the event of hardware failure, you'll still have your work backed up. Create a separate folder or directory for each new project, and within that folder create separate other folders, such as:

• Documentation (for aims and objectives, ethics application and relevant literature, and journal of where your project is up to)
• R code (where your R code lives, the file extension is .R)
• Raw data (the data you receive to analyse, which is often an Excel or .xlsx or .csv file)
• Outputs (papers, manuscripts or reports, often a .docx or Microsoft Word file)
• .Rdata files (this is the data that is worked on in R).

<div class="panel panel-default tutorial-question-container">
<div data-label="R_code" class="tutorial-question panel-body">
<div id="R_code-answer_container" class="shiny-html-output"></div>
<div id="R_code-message_container" class="shiny-html-output"></div>
<div id="R_code-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

dir.create("Documents")
dir.create("R_code")
dir.create("Raw_data")
dir.create("Outputs")
dir.create("Rdata")


# Check we've successfully created our directories!
# Don't assume anything with R.
fs::dir_tree()

<div class="panel panel-default tutorial-question-container">
<div data-label="files" class="tutorial-question panel-body">
<div id="files-answer_container" class="shiny-html-output"></div>
<div id="files-message_container" class="shiny-html-output"></div>
<div id="files-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

File paths

Under the hood

It is a good idea to know about file paths. Your computer has a lot of information on it! We need to know exactly where on the disk that file is stored. File paths are a bit like an address for files and folders for your computer system, just like an address locates buildings and houses in a town. It helps us find a file and are particularly important when importing files into R. Different operating systems have different file path conventions.

• In Windows™, a file path usually starts with a letter and uses backslashes ("\") e.g. C:\Users\Simon
• On a Mac™, a file path usually starts with a forward slash ("/") e.g. /Users/Simon/Documents

Where can we find file paths?

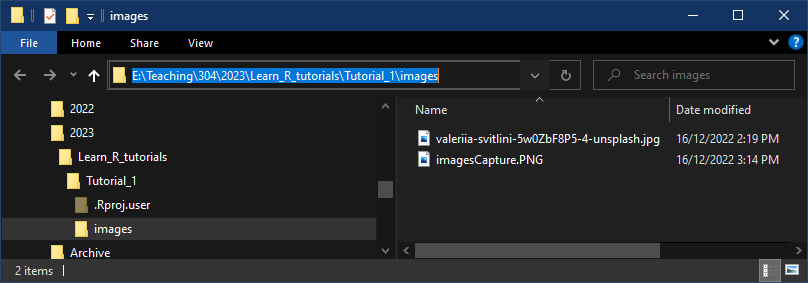

In Windows, file paths can be found in Windows Explorer, the programme we use to navigate around the computer. You can bring up Windows Explorer by holding down the Windows key and pressing E. The file path or address to the folder is highlighted in the address bar up the top.

Windows explorer

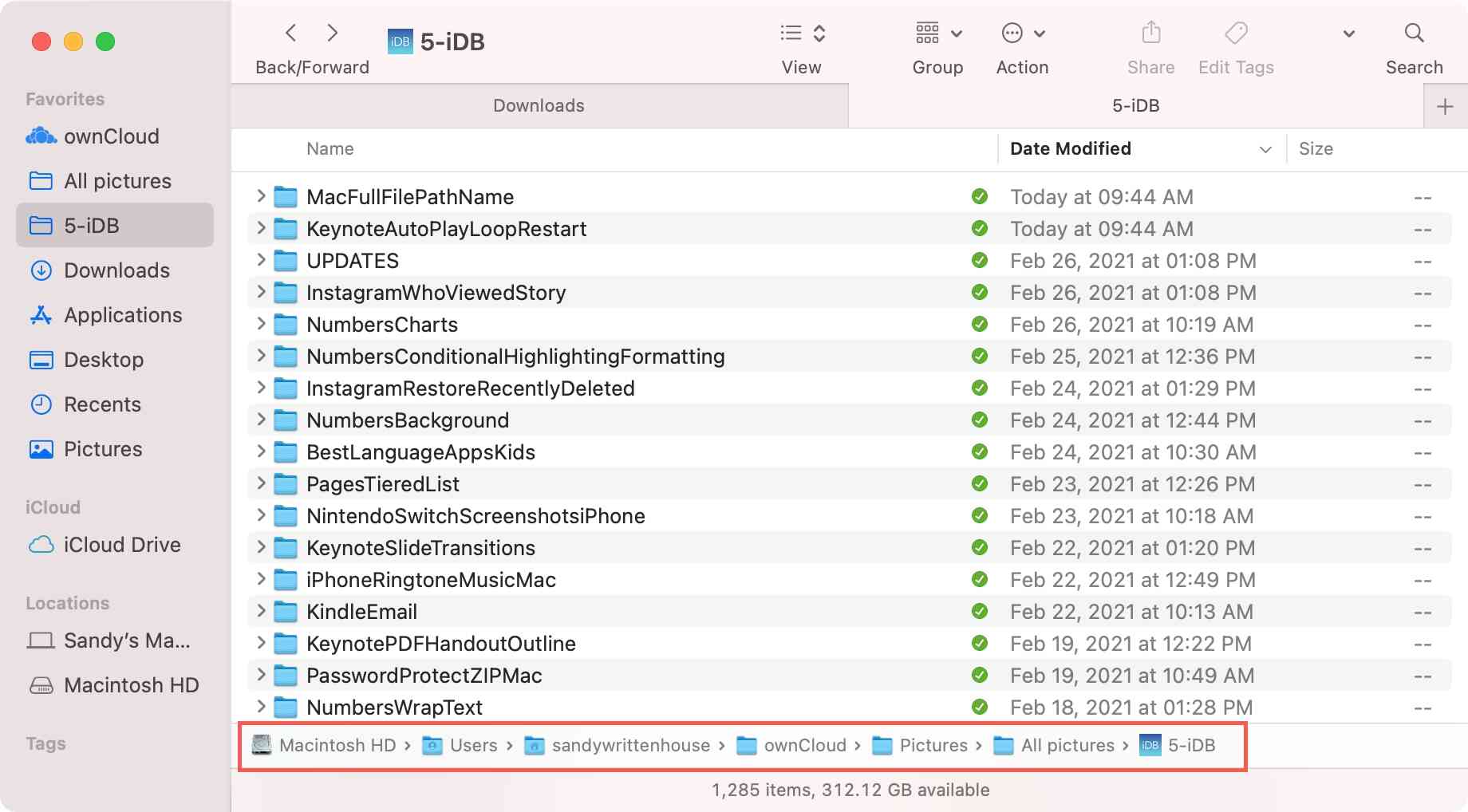

On a Mac, you will need to use the equivalent, which is Finder. You may need to use "View" --> Show path bar so that the path is highlighted down below. The path is highlighted down the bottom, and CTRL clicking on the path bar will give the option of Copy "File" as Pathname.

Finder

In Windows, the convention is to have a drive letter followed by a colon e.g. C:\My Programs. Windows uses backslashes (\\) in its paths, whereas, due to its linux roots, R uses forward slashes (/) as do Macs. This can create much confusion 😵. Thus the equivalent R path to the original Windows directory is C:/My Programs. Notice the subtle difference in the direction of the slashes??

Relative or absolute paths?

Paths can also be relative or absolute, which can be another stumbling block for novice programmers. An absolute path describes a location relative to the to the root or starting directory. In Windows this is C:\ and on a Mac, it is /. A relative path is used more frequently in programming, because it makes your code more portable across different computers. Relative paths, instead have the concept of a working directory. This is the folder where the programme is looking for files. Deviations from this directory are indicated by paths that start with a . (current directory) or .. (parent directory), such as "./data/sids.xlsx". This means "start from the working directory where the programme is currently looking, then go to the data directory, then look in the data directory for sids.xlsx".

<div class="panel panel-default tutorial-question-container">
<div data-label="relative_paths" class="tutorial-question panel-body">
<div id="relative_paths-answer_container" class="shiny-html-output"></div>
<div id="relative_paths-message_container" class="shiny-html-output"></div>
<div id="relative_paths-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

It is a good idea to store your work on a drive that will be backed up. Electronic storage is great from a convenience point of view, but it can be easily erased by accident or by hardware fault.

<div class="panel panel-default tutorial-question-container">
<div data-label="paths" class="tutorial-question panel-body">
<div id="paths-answer_container" class="shiny-html-output"></div>
<div id="paths-message_container" class="shiny-html-output"></div>
<div id="paths-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

getwd()

Comments

While we will focus on getting R to do stuff for us by writing code, sometimes we want to write stuff for us to see, not the computer. This is useful for your future self, who may not understand what your very clever code is accomplishing today. These annotations are called comments. All you need to do is preface what you are saying with a #🤓.

# long and complicated function that does miraculous things...

The basics of R: objects, functions and arguments

This is the folder in which your R session is currently working.

It will be able to find files that you tell to look for in this directory.

R is built on functions. Functions take some sort of input and transform it into output.

<div class="grViz html-widget html-fill-item" id="htmlwidget-d51d1b7f6a1554c29dd5" style="width:624px;height:384px;"></div>
<script type="application/json" data-for="htmlwidget-d51d1b7f6a1554c29dd5">{"x":{"diagram":"digraph flowchart {\n      graph [layout = dot, rankdir = LR]\n      # define node aesthetics\n      node [fontname = Arial, shape = oval, color = Lavender, style = filled]        \n      tab1 [label = \"Input\"]\n      tab2 [label = \"Function\"]\n      tab3 [label = \"Output\"]\n      \n# set up node layout\n      # Childcare centres\n      tab1 -> tab2;\n      tab2 -> tab3;\n      }","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>

In addition, arguments and options are used to modify the output of functions. Functions often have default or automatically applied arguments, that have to be explicitly modified.

<div class="grViz html-widget html-fill-item" id="htmlwidget-fd970354cc4de91b9af9" style="width:624px;height:384px;"></div>
<script type="application/json" data-for="htmlwidget-fd970354cc4de91b9af9">{"x":{"diagram":"digraph flowchart {\n      graph [layout = dot, rankdir = LR]\n      # define node aesthetics\n      node [fontname = Arial, shape = oval, color = Lavender, style = filled]        \n      tab1 [label = \"Arguments\"]\n      tab2 [label = \"Options\"]\n      tab3 [label = \"Function \n default arguments\"]\n      tab4 [label = \"Output\"]\n      \n# set up node layout\n      tab1 -> tab3;\n      tab2 -> tab3;\n      tab3 -> tab4;\n      }","config":{"engine":"dot","options":null}},"evals":[],"jsHooks":[]}</script>

For example, list.files() is an example of a function. The brackets at the end distinguish a function from another type of object, such as the name of a data.frame which does not have brackets. To see what the arguments for a particular file are type a question mark ?, followed by the name of the function.

• Try to get the documentation for the function list.files() in the pane below.

# without_brackets ----
?list.files

It should show the arguments and defaults for list.files() and describe their behaviour, perhaps in a new browser tab. Also, some useful examples are given at the bottom. In R, it may open a browser and show the help file.

We can now appreciate that an option (or in computer speak argument) is recursive = TRUE. This lists not only the files in the working directory, but also others that are contained in other directories or folders in the working directory and so on.

We can look at what is in our working directory in Finder or Windows Explorer but we can also use R. Try running the following code. Note, the argument recursive = TRUE to our function list.files(). Note, that functions in R are always accompanied by brackets "()". This ensures that the output is displayed with subsequent folders and files within the working directory.

## default argument (recursive = FALSE)
list.files()

## altered argument
list.files(recursive = TRUE)

fs::dir_tree()

We can see that there is a sids.xlsx dataset in the data directory. The data directory is in our current directory. The dir_tree() command shows the structure more explicitly. . is shorthand for the current or working directory.

Ok, so we know that sids.xlsx is in our data directory, and that the data folder or directory is in our current directory.

Importing data using file paths

Now we can go ahead and import our dataset sids.xlsx into R for analysis. We need to tell R where to find sids.xlsx. We know of a function that reads .xlsx files called import() in the rio package. We need to add the path as the first argument to the import() function. Go ahead and try importing the Excel™ sheet by modifying the following code. Remember that the path has to be in quotation marks as it is a string. We have decided to name our spreadsheet df, standing for data frame. The <- is an assignment operator.

## This function needs a text relative file path in quotes as an argument
df <- rio::import()

## This function needs a text relative file path in quotes as an argument
df <- rio::import("./data/sids.xlsx")

df <- rio::import("./data/sids.xlsx")
## how do we see a sneak peak of the data?

df <- rio::import("./data/sids.xlsx")
## how do we see a sneak peak of the data?
head(df)

<div class="panel panel-default tutorial-question-container">
<div data-label="interpret_df" class="tutorial-question panel-body">
<div id="interpret_df-answer_container" class="shiny-html-output"></div>
<div id="interpret_df-message_container" class="shiny-html-output"></div>
<div id="interpret_df-action_button_container" class="shiny-html-output"></div>
<script>if (Tutorial.triggerMathJax) Tutorial.triggerMathJax()</script>
</div>
</div>

Summary

Hopefully, we have learned a lot in this session.

Specifically, we have covered:

• The need to keep our files tidy. Folders are free! Don't just dump everything on the desktop!
• A knowledge of file paths are essential for working with R. Subtle but important differences between Windows and MacOs file paths. R prefers the MacOs version due to its Linux/Unix roots.
• The basic building blocks of R include objects, functions() and arguments. Please learn what these dreaded jargon words mean, it will make your R life much simpler! 🥸
