A little revision

• Attempt the following question...

The cot-death case-control study

Cot death was an important problem in the 1980s and New Zealand experienced an epidemic of the disease. There was a competition between the lab scientists and epidemiologists over who would be able to come up with an answer to respond to the epidemic.

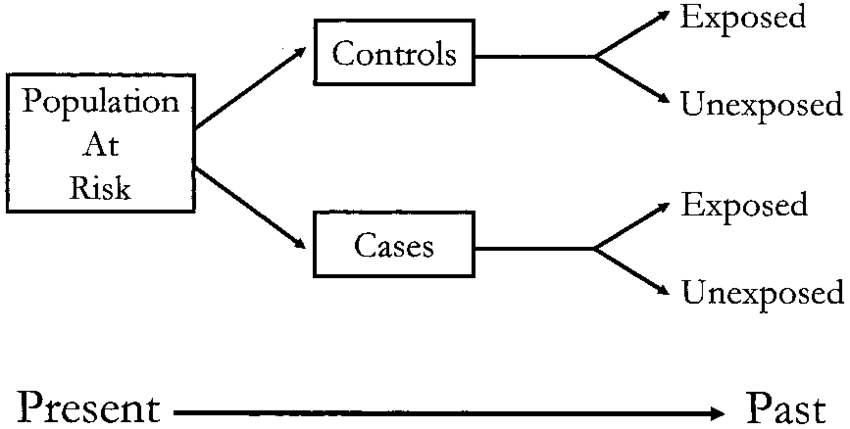

The critical elements of a case-control study are the definition of cases and controls (the disease), and the potential exposures.

Here, cases were mothers of babies who had a child that died from unexplained causes in the first year of life, whereas controls were mothers of children less than one year old who were in normal health.

Some of the possible causes or exposures were:

• sleeping position of the baby on the night before death, or randomly chosen for controls (front vs. back or side)
• bed-sharing with parents (yes or no)
• mother smoked cigarettes (yes or no)

Loading 📚 libraries

The main libraries that will help us achieve our goals today will be:

lattice  # plots!
epitools # calculating odds ratios & risk ratios!
arsenal # making nice tables!

which are useful for making some plots.

To install and load libraries in R, please complete the following exercise, to install and load the lattice package.

Note: all the other libraries are loaded, but in the real world, if we were using all three libraries, we would need to load all three in the same manner.

if (!require()) install.packages()
library()

if (!require(lattice)) install.packages("lattice")
library(lattice)

The data is already loaded into this webpage, and checked its quality, so since we've covered that last session, we won't do it now, but here's a link just in case you've forgotten. Remember, we called the spreadsheet (in R data.frame) "df" short for "data.frame".

Does birth weight influence cot-death?

We want to know whether (or not) birth weight is likely to influence risk of cot-death.

If birth weight has an influence, then we expect to see a difference in the mean birth weight between the cases and controls.

If there is no influence, we expect the means in the two groups to be very similar.

How do we know how different the means must be to not just be due to chance?

First step: visualise

To do this we compare the means of the birth weights between the cases and the controls. Let's first examine the distribution of birth weight using the trusty histogram.

?lattice::histogram

lattice::histogram(~ Birth_wt, data = df)

lattice::histogram(~ Mother_age, data = df)

lattice::histogram(~ Birth_wt | Case_status,
                   data = df[, c("Birth_wt", "Case_status")] |> na.omit(),
                   xlab = "Birth weight (grams)",
                   layout = c(1, 2),
                    panel = function(x, ...) {
                    panel.histogram(x, ...)
                    panel.abline(v = mean(x, na.rm = TRUE),
                                 col = 'black', lty = 2 , lwd = 3)
                    } )

lattice::histogram(~ Mother_age | Case_status,
                   data = df[, c("Mother_age", "Case_status")] |> na.omit(),
                   xlab = "Mother age (years)",
                   layout = c(1, 2),
                    panel = function(x, ...) {
                    panel.histogram(x, ...)
                    panel.abline(v = mean(x, na.rm = TRUE),
                                 col = 'black', lty = 2 , lwd = 3)
                    } )

The boxplot

Whilst the histogram is a useful tool, you can see it is a bit of a pain to compare measures of central tendency, such as means and medians. The boxplot is very useful for comparing medians (central tendency) and the distribution of continuous variables, without too much complexity.

We will redo what we've done comparing birth weight by disease (SIDS) status. Run this code and change and submit the code to check maternal age Mother_age by case status.

boxplot(Birth_wt ~ Case_status,
        data = df)

boxplot(Mother_age ~ Case_status,
        data = df)

Hint: You need to replace Birth_wt for the other variable Mother_age.

Interpret the boxplot

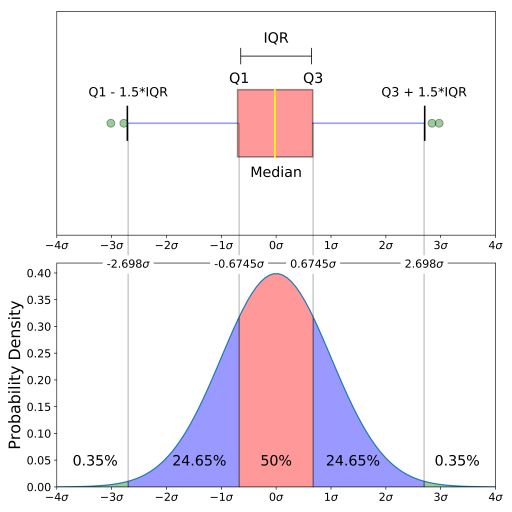

A boxplot has a number of features that are important to recognise.

The boxplot divides the continuous variable into four quartiles, with the second and third quartiles represented by the box, divided by the median or middle value. The whiskers are the last observation within 1.5 x the interquartile range (length of box). Any values beyond 1.5 x the interquartile range are plotted separately as possible outliers.

Enter the median value of the maternal age in years of cases.

25

Hint: You need to check the value on the vertical (y) axis of the middle line in the box above Case.

Enter the median value of the maternal age in years of controls.

27.5

Hint: You need to check the value on the vertical (y) axis of the middle line in the box above Controls.

Enter the median difference of maternal age in years between cases and controls.

2.5

Hint: You need to check the difference in y-value between the middle lines for cases and controls.

The t-test: is the difference in group means 'significant'?

We now see that there is a difference between birth weight and maternal age between cases and controls, but is this likely to be due to chance or not? The plot does not tell us this. The plot checks the symmetry of the distribution and the magnitude of the difference. The statistical test tells us whether this difference is due to chance or not. Is the difference likely to be true or is it likely to be due to chance?

To check whether or not this difference is due to chance (the null hypothesis), we need to do a t-test.

The t.test(y ~ x) function in R is used where y is numeric and x is a two-level category.

It will estimate the means in both groups, the magnitude of the difference in means, and the \(P\)-value which assesses whether the difference is likely to be due to chance or not.

• < 0.05 = difference in means is unlikely to be due to chance or statistically significant (consider type-1 error also) = evidence for association and possible causal influence.
• ⋝ 0.05 = difference in means is likely to be due to chance or not statistically significant (consider type-2 error) = evidence for no association and no likely causal influence.

Run the following code, and adapt it to test for a difference in Mother_age by Case_status.

Note the use of the formula argument.

t.test(Birth_wt ~ Case_status,
       data = df)

t.test(Mother_age ~ Case_status,
       data = df)

Note: 2.2e-16 is scientific notation which is the same as \(2.2 \text{ x } 10^{-16}\) or 0.00000000000000022. This is a very small number, which means that if there were truly no difference in birth weight between the two groups, it would be extremely rare to see such a difference that we have observed, if the study were repeated over and over. In fact, it would be expected to get such a result, or more extreme, less than one in one hundred trillion repetitions!

As a bit of revision, we will remind ourselves of what the t-test means.

The t statistic estimates how many standard errors the observed results are from the null value of no difference.

The critical threshold for the t statistic varies according to the degrees of freedom which is \(n_1\) + \(n_2\) - 2.

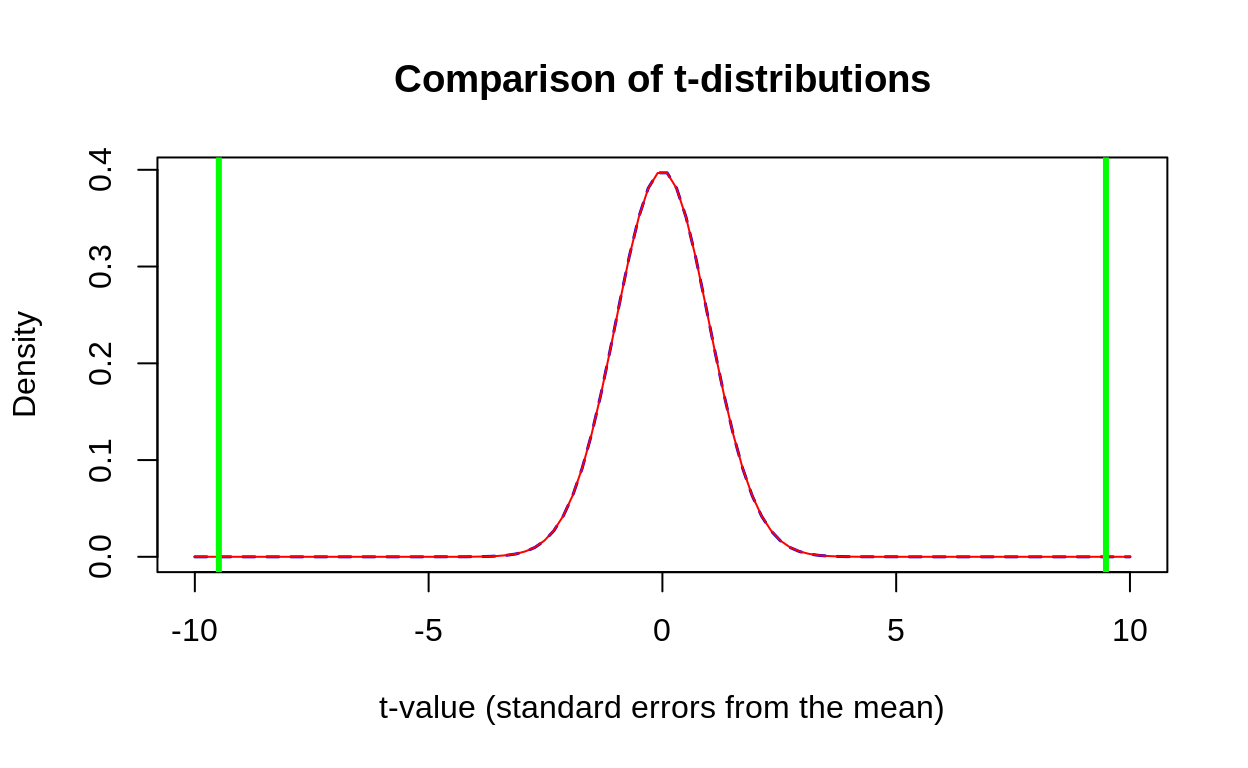

We can visualise this distribution with the following code:

x <- seq(-10, 10, length = 100)
dfreedom = 491
plot(x, dnorm(x), type = "l", lty = 2, xlab = "t-value (standard errors from the mean)",
     ylab = "Density",
     main = "Comparison of t-distributions", col = "blue", lwd = 1.5)
    lines(x, dt(x, dfreedom), col  = "red")
    abline(v = c(-9.4866, 9.4866), col = "green", lwd = 3)

The green line shows how likely the observed result is under the null (or no association) hypothesis. You can see that once we are beyond about 2.5 standard errors from the null, we are well outside the bounds of what is likely to happen from chance. At 9.5 standard errors, we are deeply in very improbable territory for the null hypothesis belief.

This tells us that there is likely to be a real or true difference and thus an association between birth weight and maternal age and SIDS status. This may be a direct cause or may be explained by other confounding factors, or other biases, as we shall discuss in future lectures and tutorials.

Categorical tests of significance

Let's say we are interested in whether or not sleeping an infant on their front is a risk-factor for cot-death (Case_status). Our relevant exposure variable here is Sleep_position. We can look at the association between Case_status and Sleep_position, with the following code:

## Estimate risk ratios and odds ratios
tab <- table(df$Sleep_position, df$Case_status)
epitools::oddsratio(tab)
epitools::riskratio(tab)

## reorder Case_status variable!
df$Case_status_f <- factor(df$Case_status, levels = c("Control", "Case"))

## Make a 2 x 2 table
tab <- table(df$Sleep_position, df$Case_status_f)

## Estimate odds ratio
epitools::oddsratio(tab)

## Estimate risk ratio
epitools::riskratio(tab)

tab <- table()
epitools::oddsratio()

tab <- table(df$Mother_smoke, df$Case_status_f)
epitools::oddsratio(tab)

Tabulating results in publications

Often, we like to see the association between a number of sociodemographic factors and case and control status in a table.

## Use attributes to make nice labels

attr(df$Mother_age,'label')  <- 'Maternal age (years)'
attr(df$Mother_smoke,'label')  <- 'Maternal smoking status'

## Automagically make a table 1
tab <- arsenal::tableby(Case_status ~ Mother_age + Mother_smoke + Occupation,
                        data = df, total = TRUE, ordered.simplify = TRUE)

summary(tab, text = TRUE)

## Use attributes to make nice labels

attr(df$Mother_age,'label')  <- 'Maternal age (years)'
attr(df$Mother_smoke,'label')  <- 'Maternal smoking status'

## Automagically make a table 1, add `Sleep_position` and `Bedshare`
tab <- arsenal::tableby(Case_status ~ Mother_age + Mother_smoke + Occupation,
                        data = df, total = TRUE, ordered.simplify = TRUE)

summary(tab, text = TRUE)

attr(df$Mother_age,'label')  <- 'Maternal age (years)'
attr(df$Mother_smoke,'label')  <- 'Maternal smoking status'
## Automagically make a table 1, add `Sleep_position` and `Bedshare`
tab <- arsenal::tableby(Case_status ~ Mother_age + Mother_smoke + Occupation +
                          Sleep_position + Bedshare,
                        data = df, total = TRUE, ordered.simplify = TRUE)

summary(tab, text = TRUE)

Summary

We have had a busy hour learning about simple statistical testing for categorical and continuous variables. These crude tests can be used if we are not concerned about the influence of third or confounding variables.

• Please visualise statistical tests with a plot before doing the formal test.
• For categorical exposures and outcomes, we often use chi-square tests or Fisher exact tests.
• For categorical exposures and continuous outcomes or vice versa, we often use \(t\)-tests or ANOVA (analysis of variance).
• Remember, the \(P\)-value is a conditional probability. The condition is that the null or no effect hypothesis is true and the P-value tells us how frequent our results or more extreme would occur given this belief. If the \(P\)-value is less than 0.05, then we abandon the null belief, and instead believe that the exposure and outcome are associated. Remember, statistical association is different from causation.
