Navigating the posit™ interface

In this session, we will be practising some coding on the web, but ultimately, we want you to build confidence with using Posit, ™ an 'integrated development environment' or IDE for coding R.

You can download a free version of Posit to run on your Windows™ or Mac™ computer or as we will do in this course, we will use Posit cloud. ™ You will need to sign-up for an account, but if you use less than 25 hours per month, it will be free. The terms of the free account are here. The benefit of using Posit cloud ™ is that we don't have to install anything, and sometimes there are problems with permissions that can cause trouble for students starting out.

Our aim here is keep things as simple as possible.

Using R and posit ™ can be unforgiving. It is case-sensitive and if you don't get the function and object names exactly right, R will not understand what you are trying to tell it to do. R, although very sophisticated, is a super dumb machine! It carries out to the letter exactly what you tell it. Please bear this in mind next time you are troubleshooting with it!

Also, it is useful to litter your code with comments, so that if you forget what your code is doing, you can read your comments to explain what is happening. When you are coding, you have to bear in mind your forgetful future self! These can be done, simply by using a # sign in front of what you are writing.

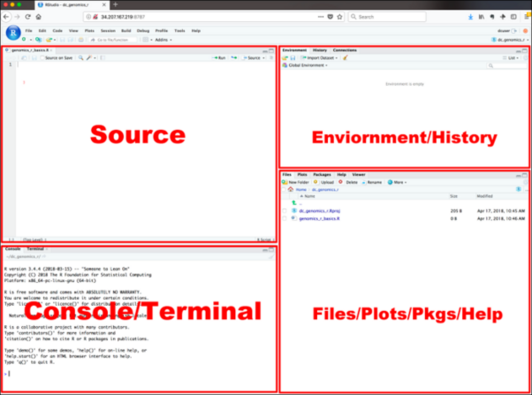

posit has four different parts and at first it can be a bit intimidating. Let's explore the different parts of the program before we start.

What are the four different panes in posit ™?

It seems strange, but the Source pane sends commands to the Console. This is so that you have a record of what you've done as your Source file, which is simply plain text. The file extension, which is the type of file you create when working with R is a .R file. The Console is like the brains of the operation and executes your commands from the upper Source window. The right upper pane shows the objectss or datasets or other objects that we are working on and the bottom right pane has different tabs to see our files, plots, packages and help.

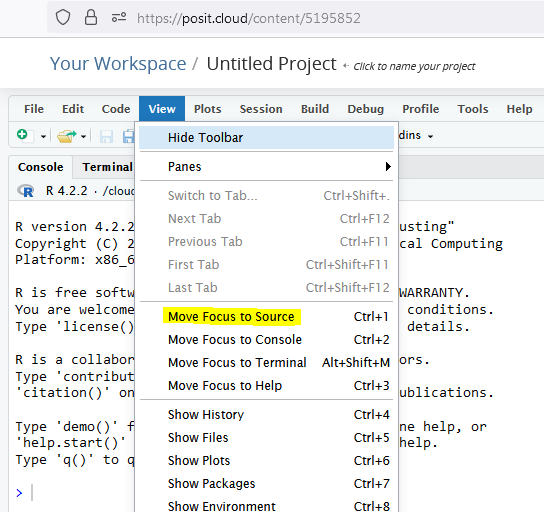

What if I don't see the Source pane?

In posit, I suggest to go to the View -> Move Focus to Source to bring up the source pane if it is not present.

Extending R by using libraries

R is like a 'go-kart' that many, many people have contributed to and has been turned into a Rolls-Royce. Basic mathematical and statistical functions are 'built-in' to R, but libraries are little 'packages' of code with additional functions that allow us to extend the use of R.

Four libraries will help us achieve our goals today will be:

rio

which helps us import a variety of data from a wide variety of formats, such as Excel of comma delimited files (.csv). See here for more information.

visdat

This helps us see missing data in our data.frame in a visual manner.

skimr

skimr is a package for summarising our data.frame. See more information here.

To install libraries, we need to be connected to the internet!

To install and load libraries in R we use the following code:

install.packages("rio")
library(rio)

This is the simple way. If you have already loaded rio, then a way to not have to re-install it is with a bit more code that I'll use quite frequently:

if(!require(rio)) install.packages("rio")
library(rio)

This is a bit complex, but illustrates a useful function. In computing we can make the computer do stuff if a certain condition is fulfilled or is TRUE. This is called conditional logic. It is vitally important.

The

if(!require(rio))

bit, is saying "have a look and see whether you already have the rio package". The

require(rio)

bit will return a logical value of TRUE if it is already loaded in your computer, and FALSE if not. We only want the computer to install the library if it isn't already installed. If it is not there, the result of require(rio) will be FALSE. The if function only executes the following function if TRUE, so we need to turn the TRUE into a FALSE and vice versa. This is what the ! does. Don't worry if you don't get this.

It is a bit of magic that saves you a bit of time loading new libraries! The if statement means that the install.packages() code only runs if you don't have rio already installed. When you have lots of packages to load, you'll find this very handy!

library(rio)

bit makes sure that the R console can find the function we are after. For example, if we are wanting to use the import() function from the rio package, if we haven't typed library(rio) we will have to tell R where to find the import() function with the following code...

rio::import("./path/to/csv or Excel file.csv")

With the library(rio) call, we can now more simply type:

import("./path/to/csv or Excel file.csv")

if (!require()) install.packages()
library()

if (!require(epiDisplay)) install.packages("epiDisplay")
library(epiDisplay)

File paths

Notice that we have introduced the concept of file paths.

File paths are important and tell you where on a computer a file resides, a bit like an address tells you where on the earth a house is located. Without them, we will soon get very lost!!

A good summary of the intricacies of file paths is given here. In fact, the e-book available at www.r4epi.com is a very useful resource for basic R coding tips.

Another concept is that file paths can be either relative or absolute. In fact, the file I'm writing this tutorial on has a path. This path is on my USB stick:

E:\Teaching\304\2023\Learn_R_tutorials\Tutorial_2

You can see that I store this file on my

• USB drive labelled E:\
• Then in the Teaching directory or folder
• Then in the 304 directory
• Then in the 2023 directory
• Then in the Learn_R_tutorials directory
• Then in the Tutorial_2 directory.

This is a bit like an address for example to Auckland University here in Grafton. Start in New Zealand, then head to Auckland, then the suburb of Grafton and then Park Road. Then go to number 22.

Each part of the path is like an address. The E:\ is the letter assigned by the Windows ™ operating system to my USB stick. The hard disk for this computer or any computer running Windows ™ is C:\. Instead on a Mac ™, the hard disk path is simply denoted by /. This is something that often poses a lot of confusion for people getting started in programming. If you can distinguish between a forward slash (/) and a back slash (\) and grasp when one is used over the other, you are getting off to a good start!

Most of my stuff on my Mac ™ is stored in the /Users/simonthornley/Documents directory for example.

A tricky quirk of R... there are many... is that the \ character is used in R to denote "escape" characters. Therefore, I recommend converting \ to forward slash (/) in R.

• A test of your knowledge

Different types of objects

In R, just as in the real world, we want to store different types of information and assign it a name.

For example, if we want to describe myself, I have different attributes.

df

str(df)

An important step before we dive in...

The final step involves three aspects of the data that I think are important to look for before we dive in to analysis. We have to ask ourselves "is there any glaring errors in the data?". It is often easier and more efficient to identify such errors early in the piece rather than just as we are about to submit our Nobel prize winning paper to the British Medical Journal.

Hopefully, by now, you have noticed that it is easy to make mistakes when coding or entering data. Because of this, we need to be sceptical about the quality of new data that we receive.

The main errors I look for when starting a new analysis are:

• duplicated observations or rows
• missing data (how much and which variables does it affect?)
• ranges (what are the maximum and minimum values for numeric variables - are they biologically plausible?)

We want to avoid the situation which can happen in research of garbage in, garbage out. It is much, much more preferable to pick up problems before they occur.

Importing our data

We will import some data from the internet, using a URL rather from our local machine, using a file path. It is a cot-death dataset. We will talk about what it means later, but for now will just dive in to have a look at the data. It was a case-control study to look for risk factors for cot-death in the 1980s. Suspected causes were:

• bed-sharing
• maternal smoking
• sleeping position

Subjects in the study

These were women whose infants suffered from unexplained death that fulfilled the definition of cot-death. Controls were from randomly selected women with normal healthy babies, which were matched for age and ethnicity.

We will use the following code:

Note: This assumes that we have the rio package installed on our machine!

df <- rio::import("./data/simple_sids_epiinfo2.xlsx")

Here, the file path ./data/simple_sids_epiinfo2.xlsx is an argument or modifier to the function that pulls in the data we want (import). The argument tells rio::import() where to look on the computer for the file. This is a very efficient way of getting data into R.

If we search in the import() documentation using the code ?import, we see that the first argument indicates that it should be character string, meaning it should be in quotes, and it can be either a:

• file (use a path to a file on your local computer)
• URL (address to a file on the internet)
• or .zip or .tar archive. These are types of compressed files.

The relevant part of the help is shown below

If you are using posit, ™ then you will see the object in the top right pane (Environment/History).

You can then double-click it to see what it looks like in a mode similar to Excel. ™

Checking for duplicates

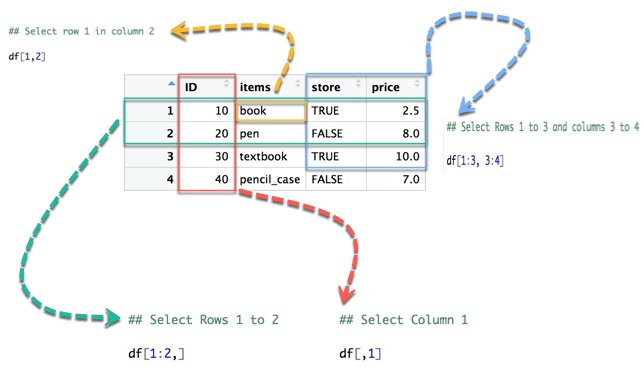

We can now have a look for duplicates in the df object which incorporates our data pulled in from an Excel ™ sheet. To accomplish this feat, we will need to dive into subsetting. In the picture below we see a visual representation of a spreadsheet or data.frame in the R world. We see that the square brackets ([]) after the object name are used for subsetting. Code is separated within the square brackets by a comma.

• Code before the comma subsets rows (individuals in epidemiology)
• Code after the comma subsets columns (variables or exposures or confounders in epidemiology)

You can see that the 1:2 code before the comma (green arrow) in the square brackets selects the first two rows. The 1 after the comma indicated by the red arrow, selects the first row. Note that if there is no code before the comma, all rows are selected. The blue and yellow arrows shows a combination of subsetting being used.

df <- rio::import("./data/simple_sids_epiinfo2.xlsx")

df <- rio::import("./data/simple_sids_epiinfo2.xlsx")
df[1, ]
df[ , 1]
df[1, 1]

df[duplicated(df), ]

## Pipe, to find the number of rows that are duplicated

df[duplicated(df),] |> nrow()

## Old-fashioned version of above, with brackets.

nrow(df[duplicated(df),])

## Remove duplicate rows from data.frame

df_no_dups <- df[!duplicated(df), ]

3

1 - (df_no_dups |> nrow())/(df |> nrow())

Checking extreme values or ranges

The skim function from the skimr package is used to check ranges although there are many ways of doing this.

Now that we have the df_no_dups data.frame, call the skim function on this object. I encourage you to use the pipe (|>) function. Also, assume that skimr is installed and loaded in your session with the library(skimr) function call.

df_no_dups  |> skimr::skim()

Check the output, do you see any implausible values? How might you investigate if you were uncertain.

Although this is a relatively clean dataset, I've lost count of the number of times I've dealt with datasets from seemingly "official" sources that have negative values for age or duplicates or whatever. I encourage you to get into the practice of checking all data before doing serious analysis on it.

Missing data

Missing data is a big topic. Here we are just going to acknowledge it briefly and move on! Generally, we are most concerned about our exposure, outcome and important confounder variables. we are concerned that there are more than 15% missing values for each of these variables. The most important variables are the exposure and outcome, but if we are building a model with many confounders, these variables may also be important. Why is this? Well, statistical software is not very sophisticated at dealing with missing data, and if an item for exposure or outcome is missing it will just drop this observation out of the analysis. If you are doing an analysis with several variables, you may inadvertantly drop many observations from your analysis.

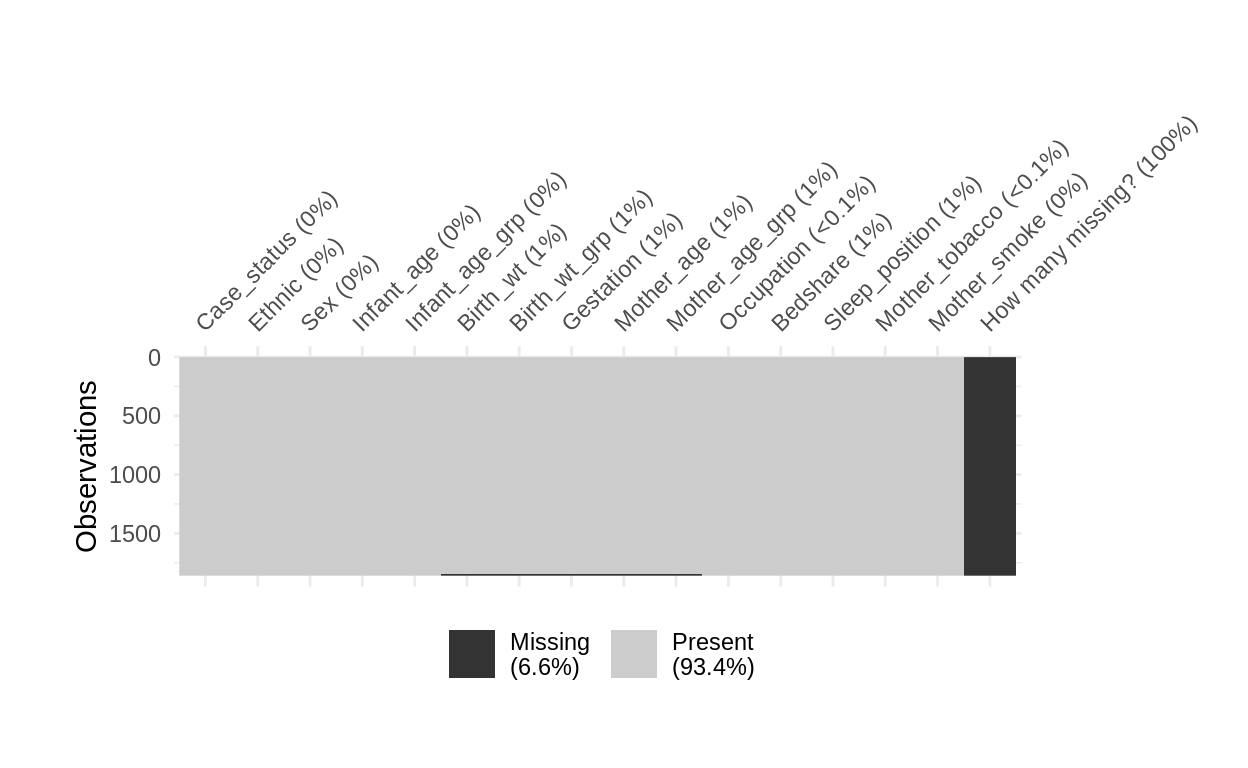

The best function I've found for visualising missing data is vis_miss() from the visdat package. Please call this on our cleaned up data.frame (df_no_dups) in the pane below. There is nothing fancy about it. The data.frame is the first argument to the function.

df_no_dups |> visdat::vis_miss()

An improved version, with some fancy code is given below

(df_no_dups  |> visdat::vis_miss()) +
  ggplot2::theme(plot.margin = unit(c(1,3,1,1), "cm"))

You can see that the proportion of missing data is low except for the last variable. You wouldn't want to include the last variable in an analysis as this would wipe out almost all of your data! Good to know!

Recoding variables

Recoding variables is a common need in epidemiological analysis.

Some reasons for recoding variables include: - To make the variable more interpretable. For example, if we have a variable that is coded as 0 and 1, it may be more interpretable to recode this to no and yes. - To make the variable more suitable for analysis. For example, if we have a continuous variable that is skewed, we may want to recode this to a categorical variable with several categories. - To make the variable more suitable for plotting. - To make the variable more suitable for modelling. - To increase statistical power. For example, if we have many categories of a variable, we may want to collapse these to fewer categories to increase the number of observations in each category and therefore increase statistical power.

You decide that you want to estimate the degree of association between a continuous variable (birth weight) and the outcome (case status). You decide to recode birth weight into a categorical variable of very low birth weight (less than 1500 grams), low birth weight (1500 to 2499 grams) and normal birth weight (2500 grams or more). This is a common thing to do in epidemiology.

To do this, we can use the ifelse() function.

There are three arguments to ifelse(). The first argument is the condition that we want to test for, the second argument is what we want to assign if the condition is TRUE and the third argument is what we want to assign if the condition is FALSE. We will create a new variable called low_birth_wt in our df_no_dups data.frame.

df_no_dups$low_birth_wt <- ifelse(df_no_dups$Birth_wt < 1500, "very low birth weight",
                                 ifelse(df_no_dups$Birth_wt < 2500, "low birth weight", "normal birth weight")  )

## Check recoding with a table

table(df_no_dups$low_birth_wt)

## Check what your new variable is stored as

str(df_no_dups$low_birth_wt)

We can also achieve the same thing with the cut() function in R. This is a bit more complex, but is more efficient for large datasets. It also has the advantage of being able to create factors with ordered levels, which can be useful for analysis and plotting.

The cut() function has several arguments, but the main ones are: - x: the numeric variable to be cut (in our case, Birth_wt) - breaks: a numeric vector of two or more unique cut points (in our case, c(-Inf, 1500, 2500, Inf)) - labels: a character vector of labels for the resulting categories (in our case, c("very low birth weight", "low birth weight", "normal birth weight")) - right: a logical value indicating whether the intervals should be closed on the right (and open on the left) or vice versa. In our case, we want to include the lower bound in the category, so we set right = FALSE.

df_no_dups$low_birth_wt_cut <- cut(df_no_dups$Birth_wt,
                                 breaks = c(-Inf, 1500, 2500, Inf),
                                 labels = c("very low birth weight", "low birth weight", "normal birth weight"),
                                 right = FALSE)
## Check recoding with a table
table(df_no_dups$low_birth_wt_cut)

## Check what your new variable is stored as
str(df_no_dups$low_birth_wt_cut)

We can also collapse variable categories, for example, we may want to collapse the Sleep_position variable to compare the high riskt categories Front_face_down and Front_face_to_side with all other categories. We can do this with the ifelse() function as follows:

df_no_dups$high_risk_sleep <- ifelse(df_no_dups$Sleep_position %in% c("Front_face_down", "Front_face_to_side"), "high risk", "other")


## Check recoding with a table
table(df_no_dups$high_risk_sleep, df_no_dups$Sleep_position)

In an exercise for you to try, see if you can recode the Occupation variable to compare Medium and High occupations with Low.

You can use the ifelse() function and the %in% operator to accomplish this.

Call the Medium and High categories "low risk" and the Low category "high risk".

The new variable name should be high_risk_occupation. You can check your recoding with a table.

df_no_dups$high_risk_occupation <- ifelse(df_no_dups$Occupation %in% c("Medium", "High"), "low risk", "high risk")

table(df_no_dups$high_risk_occupation, df_no_dups$Occupation)

Homework

I encourage you to reproduce the steps we have taken here in an R script in posit on your laptop, to make sure you can get it working in the real world, should you need to!

Summary

This has been a busy session. We have learned:

• That R often needs additional packages to accomplish what we want it to. We need to install additional packages using the install.packages() command, and the library() function means R will search for the functions() in this package in our current work session.
• That R has different types of data that we wish to analyse. These include: numbers, characters, factors and logical values.
• Before we dive in and analyse we need to take a breath and check the quality of our data. Common traps we need to look for are duplicates, missing values and out of range or implausible variables.
• We often need to recode our data. This can be accomplished with the ifelse() or cut() functions.
